Resources Rents vs Education Expenditure

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns


#Open the dataset and set display values

indicators_df = pd.read_csv('Data/Indicators.csv')
pd.set_option('display.max_rows', 6000000)#Display as much rows as possible


#Explore the names of the columns
indicators_df.columns


#Explore the subjects of study in the column "IndicatorName". It will show ALL the rows,
#so uncomment only when needed.
# pd.value_counts(indicators_df['IndicatorName'])


#Show how many indicators have information about rents as % of GDP:
rents_filter = indicators_df['IndicatorName'].str.contains('rents',case=False)
rents = indicators_df[rents_filter]
print('*Rents indicators:',rents['IndicatorName'].unique())

#Show how many indicators have information about education expenditure:
edu_filter = indicators_df['IndicatorName'].str.contains(r'^(?=.*education)(?=.*expenditure)')#Used regex                                                         case=False)
edu = indicators_df[edu_filter]
print('*Education indicators',edu['IndicatorName'].unique())

#Choosing 'Total natural resources rents (% of GDP)' indicator
NRrents_filter = indicators_df['IndicatorName'] == 'Total natural resources rents (% of GDP)'
#Choosing 'Government expenditure on education as % of GDP (%)' indicator
eduex_filter = indicators_df['IndicatorName'] == 'Government expenditure on education as % of GDP (%)'

focused_df = indicators_df[NRrents_filter|eduex_filter]
#Checking for null values in the 'eduex_df' dataframe:
print('Are there any null values in the ifilter_df dataframe?:',focused_df['Value'].isna().values.any())
print('Total null values in the ifilter_df dataframe:',focused_df['Value'].isna().sum())

#Distribution of data for the year 2013, since there's no rents data for the year 2014:
year_mask = focused_df['Year']==2013
data_2013 = focused_df[year_mask]

#Plot a kernel density plot (similar to histogram)
sns.set(font_scale=0.9)
sns.set_style('white')
g = sns.FacetGrid(data_2013,col='IndicatorName',height=5,)
g.map(sns.kdeplot,'Value',shade=True).set_axis_labels('% of GDP 2013','Frequency')
sns.despine(left=True,bottom=True)
plt.show()

print('Graph 1. A comparison of this two kernel density plots show that most countries have total\n\
natural resources rents in between 0 and around 15% of the GDP. More notorious is the plot\n\
on the right which shows most governments invest very little of the GDP in education,\n\
from 0 to around 5% of the GDP in the year 2013')


#Take a look at the range of years showing up:
print('Years',focused_df['Year'].min(),'to',focused_df['Year'].max())

#Many countries don't have a data for all the years. A filter needs to be created
#to ignore all countries that don't have enough years of data.
#Create a group before eliminating countries that don't have enough years.
education_years = focused_df['IndicatorName'].str.contains('education',case=False)
print('The Education Indicator has (a) country(ies) with max',
      focused_df[education_years]['CountryCode'].value_counts().max(),'years of data.')

rent_years = focused_df['IndicatorName'].str.contains('rents',case=False)
print('The Rents Indicator has (a) country(ies) with max',
      focused_df[rent_years]['CountryCode'].value_counts().max(),'years of data.')


#The Government expenditure on education as % of GDP (%)
#has less years of data. A threshold must be established to get as much countries as possible
#that have something around 42 years of data.
#by looking at the number of times a country appears in the dataset holding the education indicator
#we can see how many years of data it has. The following code shows a list of 20 countries with the
#most years of data.
most_years = focused_df[focused_df['IndicatorName']=='Government expenditure on education as % of GDP (%)'
                              ]['CountryName'].value_counts()

titles = pd.Series(['Years of Data'],index=['Country'])#Set titles to show in output
titles.append(most_years.head(20))


#Filtering by the countries found in the list above.
#The threshold would be 30 years of data, so now countries that have less than 30 years
#will be eliminated and countries with more than 30 years will have years removed so the average can be
#done over 30 years for all countries. The purpose is to get a mean = sum(values)/30years for each country.
edu_df = focused_df[focused_df['CountryName'].isin(most_years.index)]
#Filter Education Indicator
edu_df = focused_df[focused_df['IndicatorName']=='Government expenditure on education as % of GDP (%)']

def getEqualYearsMean(df,index_col,value_cols,threshold):
    '''df = dataframe, index_col = df column to set as index,
    value_cols = list of df columns to gather values from,
    threshold = items must have this amount of years (int).
    This function removes the years with the least values from countries that exceed the number in
    the threshold. It then gets a mean by dividing the sum of values by the same amount of years for
    each country. Returns a dataframe of countries ranked by value of mean.'''
    threshold = threshold #Anything that occurs less than or more than this will be removed.
    newIndex = df.set_index(index_col)#set new index to make selection by index posible
    values = newIndex.index.value_counts() #Count ocurrences of index values
    to_keep = values[values>=threshold].index.values #Keep index values that ocurr > threshold
    rank_df = newIndex.loc[to_keep,value_cols]#Select rows and columns to keep
    #Sort values in descending order to meet threshold
    rank_df = rank_df.sort_values(value_cols[1],ascending=False)
    rank_df = rank_df.groupby(rank_df.index).head(threshold)#group again
    #Since values are sorted, head() will show highest values
    rank_df = rank_df.groupby([rank_df.index,value_cols[0]]).mean() \
                  .sort_values(value_cols[1],ascending=False)#Sort values of final dataframe
    rank_df = rank_df.reset_index(level=1)#Reset index to convert the 2nd index into a column

    return rank_df

# #Ranking countries with the highest average Government expenditure on education as % of GDP indicator:
# #Show top 10 countries with the highest average.
high_edurank_df = getEqualYearsMean(edu_df,'CountryName',['CountryCode','Value'],30)
high_edurank_df.head(10)

#Function to produce a map given a list of countries and values.
import requests #Import to use the locateAndCreateBubbleMap() properly.
import folium
from IPython.display import IFrame, display, HTML#For rendering HTML file

def locateAndCreateBubbleMap(df,df_value,countries,colors,title,saveHTML):
    '''Find locations of countries and plot a Bubble Map with circle markers.
    df = Dataframe, df_value = Value to use for the circle size, countries =
    list of countries, colors = list of colors, title = string of text
    Returns a bubble map with circle markers representing each country, the
    size of the circle being the scaled value to represent.'''

    locations = []#Locations in [lat,lon] format
    for c in df.index:#Iterate over list of country names
        #Use this url to get country locations by inserting the country name
        url = '{0}{1}{2}'.format('http://nominatim.openstreetmap.org/search?country=',
                                 c,
                                 '&format=json&polygon=0')
        response = requests.get(url).json()[0]
        lst = [response.get(key) for key in ['lat','lon']]
        output = [float(i) for i in lst]
        locations.append(output)

    print('\033[1m' + title + '\033[0m')#Title of map

    m = folium.Map(width=600,height=360,
                  location=[31,20],
                  tiles='openstreetmap',zoom_start=1.4
                  )

    for i in range(len(df)):
        folium.CircleMarker(location=(locations[i][0], locations[i][1]),
                            radius= df[df_value].values[i]*1.1,
                            color=colors[i],
                            opacity=0.65,
                            fill=colors[i],
                            fill_opacity=0.6,
                            tooltip='<b><font color=%(color)s><tooltiptext=background-color:#616161e6>%(country)s \
                            <br/>Mean: %(mean)s</font> \
                            </b>'%{'color':colors[i],'country':df.index[i],
                              'mean':'{:.3f}'.format(df[df_value].values[i])}
                           ).add_to(m)
    #save to HTML file
    m.save(saveHTML)



colors = ['#e6194b','#3cb44b','#641e16 ','#4363d8','#f58231','#911eb4','#f28500','#f032e6',
          '#145a32 ','#16a085 ']
locateAndCreateBubbleMap(high_edurank_df.head(10),'Value',
                         high_edurank_df.head(10).index,colors,
                         "Map 1. Top 10 Countries with Highest Education Expenditure Average",
                         'Map_1.html')

#Display HTML file saved when executing locateAndCreateBubbleMap() function:
IFrame('Map_1.html', width=610, height=370)

#Plotting a simple bar graph showing the top 10 countries comparison:
country = high_edurank_df.head(10).index
values = high_edurank_df.head(10)['Value'].values
plt.figure(figsize=(10,7))
sns.barplot(country,values)
plt.title('Graph 2. Countries with Highest Average of Education Expenditure in the last 40 Years')
plt.xticks(rotation='vertical',fontsize=10)
plt.xlabel('Countries',fontsize=11)
plt.ylabel('Education Expenditure Average (% of GDP)',fontsize=11)
sns.despine(left=True,bottom=True)
plt.show()


#Filter rents and education dataframe to show only 5 top countries:
top_5_df = focused_df[focused_df['CountryName'].isin(high_edurank_df.head().index)]


#Plot two charts to compare the Education indicator with the Rents indicator over time:
g2 = sns.FacetGrid(top_5_df,col='IndicatorName',height=6,hue='CountryName',palette='bright')
g2.map(sns.lineplot,'Year','Value',linewidth=2.1).set_axis_labels('Year','% of GDP')
g2.add_legend(title='Country')
sns.despine(left=True,bottom=True)
plt.show()
print('Graph 3. 3 out of the 5 countries show a greater percentage in expenditure in education\n\
than a percentage of natural resources rents as part of the GDP. Canada and Norway are the\n\
exception, even though their final results have a downward trend in the rents indicator.\n\
The education indicator shows that this countries have been spending between 5% and 10% of the GDP\n\
in the past 40+ years')


#Correlation between the variables:

def correlation(df,CountryName,variable1,variable2):
    '''Returns the correlation after filtering the main dataframe df to avoid errors.
    df = dataframe, CountryName = type str, country name as it appears in df,
    variable1 = type str, first indicator name as it appears on df
    variable2 = type str, second indicator name as it appears on df
    Returns the variable correlation for a country'''
    country_filt = df['CountryName']==CountryName
    country_df = df[country_filt]
    #Filtering to make sure both variables appear for the same year
    #in order to make a correlation counting variable1, variable2 for year1, var1, var2 for year2, etc.
    year_filt = country_df['Year'].value_counts() == 2 #2 is for the two variables
    country_df = country_df[country_df['Year'].isin(year_filt[year_filt==True].index)]

    country_corr = np.corrcoef(country_df[country_df['IndicatorName']==
                           'Government expenditure on education as % of GDP (%)']['Value'],
                           country_df[country_df['IndicatorName']==
                                      'Total natural resources rents (% of GDP)']['Value'])

    return country_df,round(country_corr[0][1],5)

#Loop through the top five countries and print their correlation
for country in high_edurank_df.head().index:
    print(country,'correlation between indicators is:',correlation(focused_df,country,
                              'Government expenditure on education as % of GDP (%)',
                              'Total natural resources rents (% of GDP)')[1])


#SCATTER PLOTS (plotting the correlation between the indicators)
print('Graph 4.')
#Pivot so a new table is created with a column for each indicator:
scatter_df = pd.pivot_table(top_5_df,values='Value',columns='IndicatorName',index=['CountryName','Year'])
#create again the column 'CountryName' because pivot_table turned it into an index:
scatter_df['CountryName'] = scatter_df.index.get_level_values('CountryName')

#using the seaborn code to produce the scatter plots for each country:
g3 = sns.FacetGrid(scatter_df,col='CountryName',col_wrap=3,height=4.5,
                   hue='CountryName',palette=['#FF0000','#DC143C','#FF4500','#0038b8','k'])
g3.map(plt.scatter,
       'Government expenditure on education as % of GDP (%)',
       'Total natural resources rents (% of GDP)')
sns.despine(left=True,bottom=True)
plt.show()

#Taking the rents indicator and performing the same operations done on the education indicator:
#How many years of data does each country have for this indicator?
most_years = focused_df[focused_df['IndicatorName']=='Total natural resources rents (% of GDP)'
                              ]['CountryName'].value_counts()
most_years.head(20)


#Most countries have 44 years of data for the rents indicator.
#Here's a list choosing the countries with highest average
#of rents as % of GDP, keeping in mind that most of this countries have little data
#for the education expenditure indicator:

rents_df = focused_df[focused_df['CountryName'].isin(most_years.index)]
#Filter Rents Indicator
rents_df = focused_df[focused_df['IndicatorName']=='Total natural resources rents (% of GDP)']

# Use the getEqualYearsMean() function created in this project to get the highest averages:
high_rentsrank_df = getEqualYearsMean(rents_df,'CountryName',['CountryCode','Value'],44)
high_rentsrank_df.head(10)

#Filter rents and education dataframe to show only 5 top countries with highest rents average:
top_5_rentsdf = focused_df[focused_df['CountryName'].isin(high_rentsrank_df.head().index)]

#Plot two charts to compare the Education indicator with the Rents indicator over time:
g4 = sns.FacetGrid(top_5_rentsdf,col='IndicatorName',height=6,hue='CountryName',palette='bright')
g4.map(sns.lineplot,'Year','Value',linewidth=2.1).set_axis_labels('Year','% of GDP')
g4.add_legend(title='Country')
sns.despine(left=True,bottom=True)
plt.show()
print("Graph 5. Note that this countries don't have enough years of data for the \n\
Education Expenditure as a % of GDP indicator, as seen in the case of Nigeria.")


most_years = top_5_rentsdf[top_5_rentsdf['IndicatorName']=='Government expenditure on education as % of GDP (%)'
                              ]['CountryName'].value_counts()
titles = pd.Series(['Years of Data'],index=['Country'])
titles.append(most_years)


#The countries with highest natural resources rents average have to be selected
#from a list of countries that have enough years of data for the Education Expenditure indicator.
#Since Congo has 15 years worth of Education Expenditure data, and has a high rents income average,
#15 will be the threshold argument in the function getEqualYearsMean().

#Since a dataframe called edu_df has already been created, it will be
#used to filter countries with more than or equal to 15 years of education expenditure data:
edu14_yr_df = getEqualYearsMean(edu_df,'CountryName',['CountryCode','Value'],15)
edu14_yr_df.head()


#The dataframe above gives us a list of countries to choose for the highest rents average:
new_rents_df = focused_df[focused_df['CountryName'].isin(edu14_yr_df.index)]
#Filter Rents Indicator
new_rents_df = new_rents_df[new_rents_df['IndicatorName']=='Total natural resources rents (% of GDP)']

#Use the getEqualYearsMean() function created in this project to get the highest averages:
high_rentsrank_df = getEqualYearsMean(new_rents_df,'CountryName',['CountryCode','Value'],44)
high_rentsrank_df.head()


#Filter rents and education dataframe to get a new top 5 of
#countries with highest rents average:
top_5_rentsdf = focused_df[focused_df['CountryName'].isin(high_rentsrank_df.head().index)]

#Plot again two charts to compare the Education indicator with the Rents indicator over time:
g5 = sns.FacetGrid(top_5_rentsdf,col='IndicatorName',height=6,hue='CountryName',palette='bright')
g5.map(sns.lineplot,'Year','Value',linewidth=2.1).set_axis_labels('Year','% of GDP')
g5.add_legend(title='Country')
sns.despine(left=True,bottom=True)
plt.show()
print("Graph 6. Now we have countries that at least have 15 years worth of data in \n\
the Education Expenditure indicator.")


#Now a proper correlation between variables can be done:
for country in high_rentsrank_df.head().index:
    print(country,'correlation between indicators is:',correlation(focused_df,country,
                              'Government expenditure on education as % of GDP (%)',
                              'Total natural resources rents (% of GDP)')[1])


# top_5_rentsdf['Year'].value_counts()
#SCATTER PLOTS (plotting the correlation between the indicators)

#Pivot so a new table is created with a column for each indicator:
scatter_df = pd.pivot_table(top_5_rentsdf,values='Value',columns='IndicatorName',index=['CountryName','Year'])
#create again the column 'CountryName' because pivot_table turned it into an index:
scatter_df['CountryName'] = scatter_df.index.get_level_values('CountryName')

#using the seaborn code to produce the scatter plots for each country:
g6 = sns.FacetGrid(scatter_df,col='CountryName',col_wrap=3,height=4.5,
                   hue='CountryName',palette=['#1eb53a','#dc241f','#009900','k','#0038b8'])
g6.map(plt.scatter,
       'Government expenditure on education as % of GDP (%)',
       'Total natural resources rents (% of GDP)')
sns.despine(left=True,bottom=True)
plt.show()
print("Graph 7. Except for Burundi, which resembles something like a positive correlation, no \n\
country shows a correlation between the variables.")


#One last comparison to see how the rents income vary for the top 5 countries with
#high education expenditure and the top 5 countries with high rents

#First join the dataframes containing both top 5s:
hi_edu_rents_df = top_5_df[top_5_df
                           ['IndicatorName']=='Total natural resources rents (% of GDP)'] \
                           .assign(Category='Rents of top 5 Countries with High Education Expenditure Average')

hi_rents_df = top_5_rentsdf[top_5_rentsdf
                            ['IndicatorName']=='Total natural resources rents (% of GDP)'] \
                            .assign(Category='Rents of top 5 Countries with High Natural Resources Rents Average')

all_top_countries = pd.concat([hi_edu_rents_df,hi_rents_df])
all_top_countries.head()

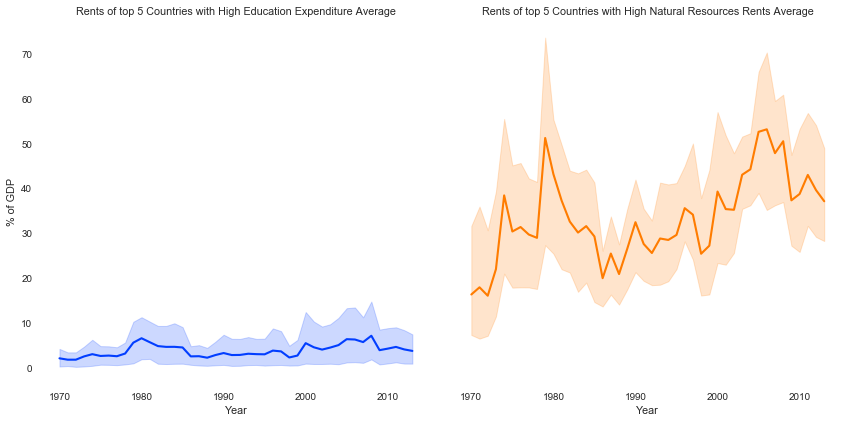

#Plot the comparison
g7 = sns.FacetGrid(all_top_countries,col='Category',height=6,hue='Category',palette='bright')
g7.map(sns.lineplot,'Year','Value',linewidth=2.1).set_axis_labels('Year','% of GDP')
sns.despine(left=True,bottom=True)
#Change the default titles of the plots:
[plt.setp(ax.texts, text="") for ax in g7.axes.flat] # remove the original texts
                                                    # important to add this before setting titles
g7.set_titles(row_template = '{row_name}', col_template = '{col_name}')
plt.show()
print('Graph 8.')
